VNX+
VNX+ is a new industry-standard, small-form-factor rugged computing architecture, effectively a compact, modular derivative of VPX. Defined by VITA 90, aligned with ANSI standards and SOSA™ principles, VNX+ enables stand-alone, modular computing systems optimized for demanding defense applications.
VNX+ systems are designed for operation in harsh and space-constrained environments including unmanned vehicles, ground vehicles, shipboard platforms, and other rugged deployments, where size, weight, power, and cost (SWaP-C) are critical constraints. The architecture supports scalable compute, I/O, networking, and acceleration modules while maintaining ruggedization, interoperability, and lifecycle longevity.
For over 43 years, GET Engineering provides reliable military electronics and is Designed, Assembled and Tested in the US.
Applications
Mission Computers
Sono Bouy
IMU
SDR
Position, Navigation and Timing (PNT)
Video Processing
Low Power Artificial Intelligence
Protocol Conversions
Ethernet over Cable

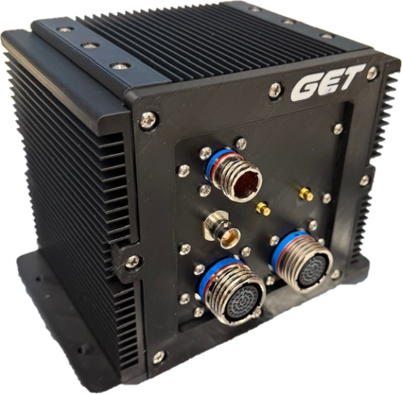

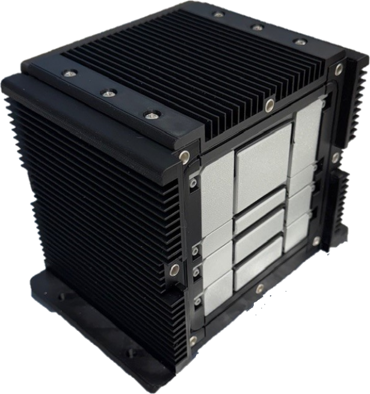

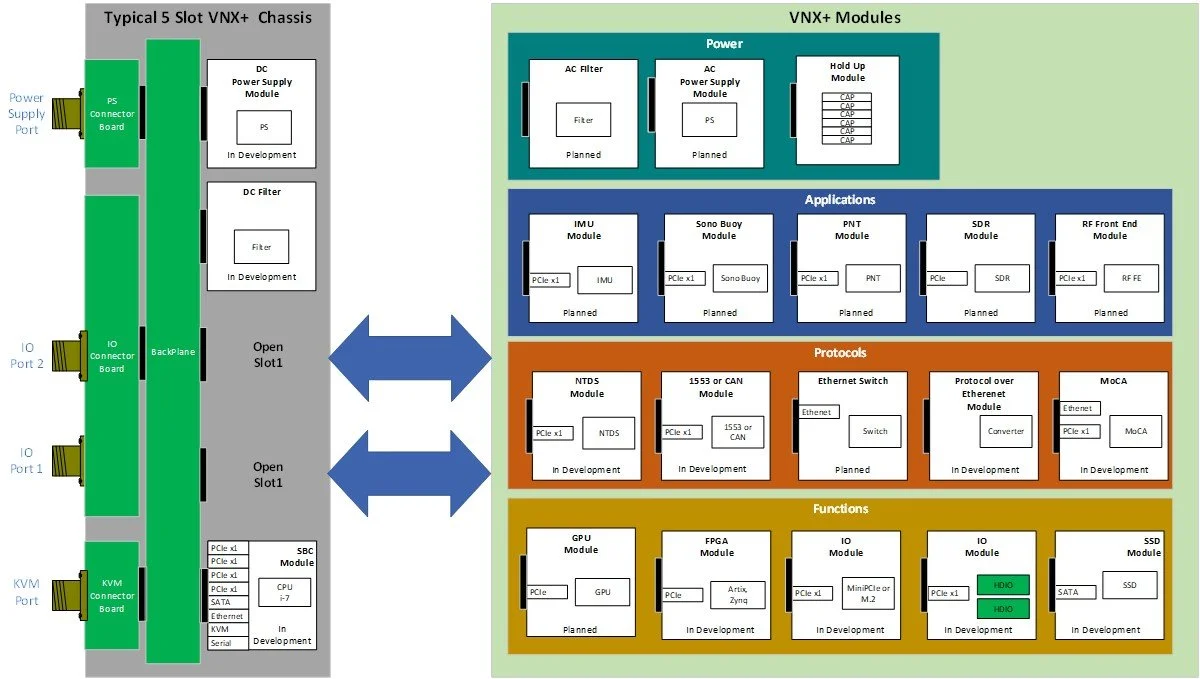

VNX+ Platform
IMU Module
GPU Module
PNT Module
FPGA Module
SSD Module
I/O Modules
High Density IO (HDIO) modules
A/D, D/A, GPIO, DI, DO, Temperature,
MiniPCIe modules
Mil Std 1553, CAN, etc.
Ethernet Switch Module
Protocols Modules
Ethernet, Mil Std 1553, NTDS, Serial, CAN
Protocol Converters
Virtual High Speed Protocols
Power Supply Modules
AC Input Voltage with filter
DC Input Voltage with filter
Hold Up
Key characteristics
Slot configurations: 5, 6, or 7 modules
Military-grade connectors
Conduction-cooled design for sealed and harsh environments
Wedge-lock module retention (VITA 90.4 compliant)
Rugged construction for shock, vibration, and extended temperature operation.
Design to meet Mil Std 810 and 461
Standardized module for high-density system integration
Scalable power and high-speed data interfaces via a common VNX+ backplane
MOSA-aligned for rapid upgrade, reuse, and lifecycle flexibility
LRU at the VNX+ module level
