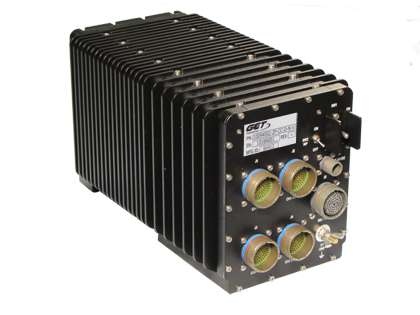

Airborne NTDS Over Ethernet System

P/N: 10094002-2P-CC-D-N-V

P/N: 10094002-2P-CC-D-N-V

Airborne NTDS
over Ethernet
Systems

GET Engineering’s Dual Parallel Channel NTDSover Ethernet solutions are now available. Qualified to Military Specification, this ¾ ATRsystem Dual Channel Parallel NTDS (Type A/B/C/H) Over Ethernet Systems transform our MIL-STD-1397 NTDS data to standard Ethernet protocol, effectively turning your NTDS ports into an Ethernet aware device that meets stringent NTDS latency specifications.

Any NTDS device can now be accessed through a standard 802.3 Gigabit Ethernet port. GETsolutions integrate legacy tactical data processors and peripheral equipment into the new NetCentric Open Architecture standard.

Client software conforms to the standard GET Engineering driver protocol. The user configures the system and transacts data though the TCP/IP connection using GET’s Common User Interface (CUI) for ease of application development and porting. Multi-node connectivity through the Ethernet interface is support

Key Features

  • Two NTDS Parallel MIL-STD-1397C Type A/B/C/H Channels

  • Two Ethernet 10/100/1000 BASE-T

  • RS232 Serial Port

  • Video output

  • Two USB ports

  • Memory Write Protect Switch

Enclosure

  • Size 192.7 x 175.15 x 321.0 mm (h x w x d)

  • Form Factor ¾ ATR

  • Conduction Cooled

  • Weight < 22 lbs

  • All Connectors are MIL 38999

Power Requirements

  • 20-36.5 VDC

Environmental Qualifications


Test Conditions
Operational and Storage Temperature MIL-STD-810G Method 501.5 Procedures I and II
Temperature Shock RTCA/DO-160G
Operational and Storage Temperature–Altitude MIL-STD-810G Method 500.5 Procedure I and II
Vibration MIL-STD-810G Method 514 Category 13
Relative Humidity MIL-STD-810G-507 Procedure II
Functional Shock Mil-STD-810G Procedure V
Crash Safety Shock Mil-STD-810G Procedure V
Explosive Atmosphere MIL-STD-810G, Method 511 Procedure I
Sand and Dust MIL-STD-810G, Method 510 Procedure I and II
Fungus MIL-STD-810G, Method 508
Lightning RTCA/DO-160G, Section 22
EMI/EMC MIL-STD-461F CE101-102, CS114-116, CE101-102,
RE101-103
ESD RTCA/DO-160G
MTBF >10,000 hrs @ 25 C Airborne Inhabited Cargo Environment
