NTDS Connectors and Cables

GET Engineering NTDS connectors and cables are designed to interface with GET NTDS adapters. By utilizing and stocking key components in‑house, GET can also ensure long product availability to our customers.

The connectors and cables you need vary depending on the adapter form factor you are using, please view the GET configuration page to see how your specific product is configured.

* Please note that all referenced part numbers are GET part numbers.


Adapter Transition Modules

PN 10073551


PN 10070551

PN 10070555

Name Part Number To be used with the following adapters
Adapter Transition Module, 112 pins 10073551 PMC (10072501)
ISA (10073501)
Adapter Transition Module, 120 pin, side-latch 10070551 PMC (10070501)
PCI (10074501)
Adapter Transition Module, 120 pin, screw lock, right-angle, shielded 10070555 PMC (10070501)

GET Engineering can customize adapter transition modules to meet your needs. Contact GET Sale for more information.

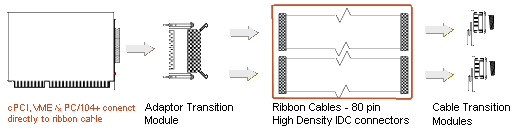

Ribbon Cables

PN 10031007-XX

Name Part Number To be used with the following adapters
Ribbon Cable, 80 pin, high density, IDC type connectors 10031007-XX PMC (10070501)
PCI (1007x501)
ISA (10073501)
cPCI (10071501)
VME Parallel (10070901)
Ribbon Cable, 80 pin 10031026-XX PC/104-Plus (10070901)

GET Engineering can customize adapter transition modules to meet your needs. Contact GET Sale for more information.

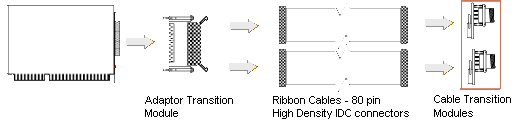

Cable Transition Modules


UYK-7

PN 10036012


UYK-44

PN 10036022


UYK-20

PN 100360274

UYK-43

PN 10036017

Name Part Number To be used with the following adapters
UYK-7 Connector Transition Module 10036012 All GET NTDS Parallel (A/B/C/H) adapters
UYK-43 Connector Transition Module 10036017 All GET NTDS Parallel (A/B/C/H) adapters
UYK-44 Connector Transition Module 10036022 All GET NTDS Parallel (A/B/C/H) adapters
UYK-22 Connector Transition Module 10036096 All GET NTDS Parallel (A/B/C/H) adapters


Serial Cables

Name Part Number To be used with the following adapters
Triax Cable, PL75 to PL 75, 25 feet 10031618 All GET NTDS Serial Type E adapters
Coax Cable, UPL20-2 *BNC) to UPL20-2 (BNC) 50 ohm, 25 Feet 1003639 All GET NTDS Serial Type D adapters
