Rugged Wavelength Division Multiplexer (WDM)

WDM box.png

Product Overview

Wavelength Division Multiplexing (WDM) allows for combination of multiple optical signals onto a single optical fiber.  Ethernet and video as well as Legacy protocols signals can be aggregated over the many optical channels on a single fiber.

Optical Switches, Optical fiber amplifiers, Add-Drop modules, Reconfigurable Optical Add-Drop Multiplexer (ROADM) or Optical Time-Domain Reflectometers (OTDR) can be added to further increase the flexibility, reliability and maintainability of an Optical Network Node or as part of a multi-degree node in a mesh WSON or ASON with < 50 msec restore time.   Optical encryption can be added to further increase security.

High reliability optical mesh network using self healing 1+1, 1:1 or 1+1+R protection can be integrated into GET Engineering Fiber Optical Data Concentrator.  These optical channels can be either bidirectional or unidirectional.

The rugged fiber optic components are housed in a military qualified, ruggedize 19”  Rack mount enclosure.  The height of the enclosure is dependent on the number of protocols and format of the signals.

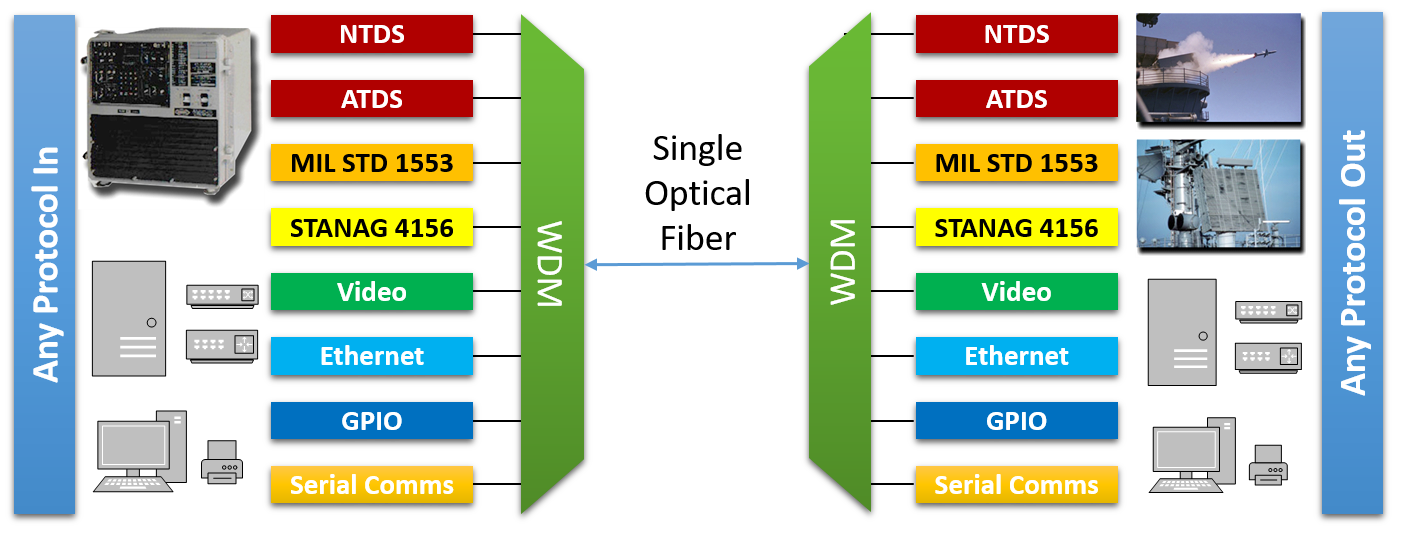

WDM Arch.png

Key Features

  • Military/Industrial Grade

  • Dense WDM or Coarse WDM

  • Combine Legacy Protocol, Ethernet and Video

  • > 100 Gbps Data Rate

  • Self Healing 1+1, 1:1 or 1+1+R protection

  • Self Discovery

  • Single Mode Single Optical Fiber

  • Bidirectional or Unidirectional

Product Specifications

Form Factor/Physical

Size                                     2U - 8U 19” Rack per  IEC60297
25” deep
Height dependent on the number of  protocols,  format and options

Connectors MIL-DTL-38999

Cooling Front to Rear fan cooled

 Electrical

Power AC or DC

 Fiber

WDM Coarse 16 Channels
Dense 88 Channels

Protection 1+1, 1:1, or 1+1+R

 Protocols

Ethernet                           Multiple channels
                                            10/100/1000 Mbps copper or fiber
                                             1 G or 10 G fiber

Video                                 Multiple channels
                                             HDMI, VGA copper

Serial Communication Multiple channels
RS232/RS485/GPIO copper or fiber

NTDS Multiple channels
Serial, Parallel copper or fiber

STANAG 4156 Multiple channels
copper or fiber

ATDS Multiple channels
copper or fiber

Mil Std 1553 Multiple channels
copper or fiber
