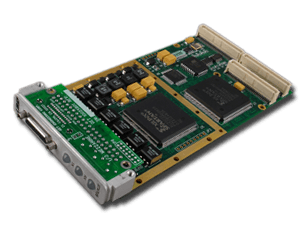

Product 10076301

ATDS PMC


Product Overview

GET Engineering is proud to announce its new MIL‑STD‑188‑203‑1A (ATDS) Conduction Cooled Interface Adapter fully compliant to the ANSI/VITA‑20‑2001 Conduction Cooled PMC Standard. This adapter provides a TADIL‑A Serial Interface functioning either as a Data Terminal Set (DTS) or Terminal Data System (TDS). All configuration parameters are accessible through a simple software interface with FPGA‑controlled DMA channels to reduce host CPU overhead.

GET Engineering’s ATDS card is available in either commercial or extended temperature ranges with the option of either front panel (Micro‑D 25 pin) or rear (P4) I/O. The software included with this adapter card provides the user with an operating system independent API enabling easy migration from one operating system to another; for example, from Windows XP to Linux.

Key Features

  • Common API across multiple operating systems

  • Memory Mapped Address Space

  • Independent FPGA‑controlled DMA Channels

  • Extensive Built‑in‑Test capabilities enable rapid troubleshooting of interface

  • Sample code provided for rapid Application Code Development

  • Optional Time Stamping on data transactions

Key Hardware Features

  • Front I/O - Part Number 10076301

  • Rear I/O - Part Number 10073601

  • ANSI/VITA 20‑2001 compliant PMC Module

  • Data Frames of 13.33 or 22 milliseconds

  • Supports Picket Addressing and Sidetone

  • User controlled Front Panel LED for Adapter Status Command and Inter‑word time‑outs

  • Front or Rear Panel (P4) I/O configurations available




Specifications
ATDS Interface Full Compliance to MIL‑STD‑188‑203‑1A, Appendix D2
Form Factor ANSI/Vita 20‑2001 Standard Single CCPMC Card Module(74 mm x 143.77 mm)
Bus Interface IEEE 1386.1‑2002 Standard for common mezzanine card family
Power Requirements 3.5 Watts
I/O Connections: Front Panel Micro‑D‑Subminiature 25‑pin plug (MIL‑STD‑83513 optional)
I/O Connections: Rear Panel (P4) P4 I/O per ANSI/VITA‑35‑2001
Temperature Standard 0°C to 55°C Operating (MIL‑STD‑810, Method 501 and 502, Procedure II)
Extended Temperature Version -40°C to 85°C Operating (ANSI/VITA 47, Class CC4)
Storage Temperature -40°C to 85°C Operating (MIL‑STD‑810, Method 501 and 502 Procedure I)
Humidity 5 to 95% humidity operational (non‑condensing) (MIL‑STD‑810, Method 507)
Vibration 0.01g²/Hz 15–2KHz, Optional 0.1g²/Hz 15–2KHz (MIL‑STD‑810, Method 514, Procedure I)
Operating Shock 20 g peak, Optional 40 g peak (MIL‑STD‑810, Method 516, Procedure I)
Mean Time Between Failures Greater than 200K hours MTBF per MIL‑HDBK‑217, Revision E,
25°C Ground Benign Environment
