Product 10075601

Conduction Cooled PMC ATDS Serial



Product Overview

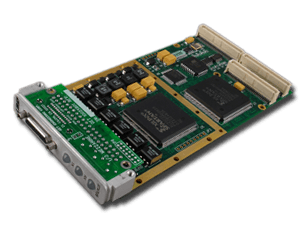

GET Engineering is proud to announce its new MIL‑STD‑188‑203‑1A (ATDS) Conduction Cooled Interface Adapter fully compliant to the ANSI/VITA‑20‑2001 Conduction Cooled PMC Standard. This adapter provides a TADIL‑A Serial Interface functioning either as a Data Terminal Set (DTS) or Terminal Data System (TDS). All configuration parameters are accessible through a simple software interface with FPGA‑controlled DMA channels to reduce host CPU overhead.

GET Engineering’s ATDS card is available in either commercial or extended temperature ranges with the option of either front panel (Micro‑D 25 pin) or rear (P4) I/O. The software included with this adapter card provides the user with an operating system independent API enabling easy migration from one operating system to another; for example, from Windows 7 to Linux.



Key Features

  • Common API across multiple operating systems

  • Memory Mapped Address Space

  • Independent FPGA‑controlled DMA Channels

  • Extensive Built‑in‑Test capabilities enable rapid troubleshooting of interface

  • Sample code provided for rapid Application Code Development

  • Time Stamping on data transactions

Key Hardware Features

  • ANSI/VITA 20‑2001 compliant PMC Module

  • Data Frames of 13.33 or 22 milliseconds

  • Supports Picket Addressing and Sidetone

  • User controlled Front Panel LED for Adapter Status Command and Inter‑word time‑outs

  • Front or Rear Panel (P4) I/O configurations available


Specifications

ATDS Interface Full Compliance to MILSTD‑188‑1A, Appendix D2
Bus Interface IEEE 1386.1‑2002 Standard for common mezzanine card family
Form Factor ANSI/Vita 20‑2001 Standard Single CCPMC Card Module
(74 mm x 143.77 mm)
Power Requirements +5VDC @ 200mA
MTBF Greater than 200K hours MTBF per MIL‑HDBK‑217, Revision E, 25°C Ground Benign Environment
ATDS I/O Connectors Micro-D-Subminiature 25-pin plug
(MIL-STD-83513 optional)
Comercial Temperature 0°C to 55°C
Extended Temperature -40°C to 85°C
