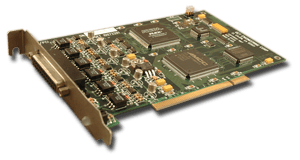

ATDS PCI


Product Overview

Key Features

  • 100% MIL‑STD‑188‑203‑1A Compliant

  • Transceiver Short Circuit and Transient Protection − Fail Safe I/O

  • TADIL‑A Serial Interface with DTS or TDS Operation

  • Full Picket Addressing and Sidetone Support

  • Data Recirculation ( Fault ) Testing

  • Single Short Format ( 4.2″ X 6.875″ ), 5 Volt, 32 Bit circuit card

  • Fits in a single PCI slot

  • Status indicator on rear panel

  • Industry Standard PCI controller with 2 channel DMA, 6 timers, and PNP memory

  • PCI Transfer Bursts @ 132 MB/s

  • Simple Plug and Play installation

  • Low Power requirements

  • Rear Panel mounted DB25‑S connector

  • Completely Software Configurable − NO Programming Switches or Jumpers




Specifications
ATDS Interface MIL‑STD‑188‑203‑1A Compliant
Physical Single PCI Card
Power Requirements + 5 VDC @ 2.5 Amp. (typ)
Operating Temp 0°C to 55°C
Operating Humidity 0% to 90% (noncondensing)

Software Selectable Features
ATDS Interface Enabled ( ACTIVE )
Tristate ( Off Line )
ATDS Modes TDS − Tactical Data System ( Computer )
DTS − Data Terminal Set ( Terminal )
ATDS Formats 24 bit Data with Byte Ordering ( ENDIAN)
Programmable Frame Transaction Delays
Separate selections for Input, Output, and address ports
Frame Timing − 13.33 or 22.00 Milliseconds
Independent Sidetone Enables

NTDS Adapter Ordering Information
Name Part Number
PCI, ATDS, MIL‑STD‑188‑203‑1A 10072201 Not Recommended for New Design (NRND)
Replaced by PN 10075681
10075681 has SIMILAR FUNCTIONALITY but is not functionally equivalent to PN 10072201.
PN 10072201 is still available for purchase in limited quantities to support existing customers
