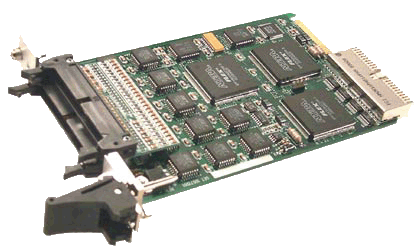

Product 10071501

cPCI NTDS Parallel

PN 10071501

PN 10071501

Product Overview

Key Features

  • 100% MIL‑STD‑1397 Compliant

  • NTDS Type A/B/C/H

  • Short Circuit Protection on all Outputs

  • Internal loop‑back capability

  • Fail safe input operation

  • Output tristate capability

  • Reconfigurable to support specific applications

  • PCI 2.1 and 2.2 compatible

  • 3.3v or 5v I/O signaling environment

  • Supports Plug & Play

  • Independent Input and Output ports

  • Operate at maximum NTDS transfer rates

  • Receive multiple forced external functions without loss

  • True Full Duplex operation

  • Asynchronous commands do not disrupt data buffers

  • High density, front panel accessible I/O connectors

  • Field Upgradeable Firmware



Specifications
NTDS Interface MIL‑STD‑1397C Type A, B, C, H
Form Factor Single 3U circuit card (100mm X 160mm)
Power Requirements (typ.) +5 VDC @ 1.4 Amp (typ)
-12 VDC @ 0.2Amp (typ)
PCI Signal Compatibility
3.3v or 5v Signaling
Relative Humidity 0% to 90% (non‑condensing)
Operating Temperature 0°C to 55°C Operating

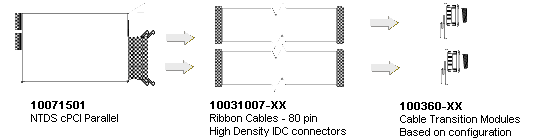

Product Configuration


NTDS Adapter Ordering Information
Name Part Number
cPCI, MIL‑STD‑1397C 10071501
Connectors & Cables Ordering Information
Name Part Number Pinout
UYK‑7 Connector Transition Module 10036012 View Pin‑out Diagram (PDF)
UYK‑43 Connector Transition Module 10036017 View Pin‑out Diagram (PDF)
UYK‑44 Connector Transition Module 10036022 View Pin‑out Diagram (PDF)
UYK‑20 Connector Transition Module 10036027 View Pin‑out Diagram (PDF)
There are many other connector transition modules available.
Contact GET sales for more information: sales@getntds.com
