Product 10071001

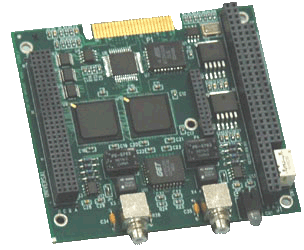

PC/104+ NTDS Serial Type D

PN 10071001

PN 10071001

Product Overview

GET PC/104+ adapters provide new levels of reliability and performance for interfacing to the MIL‑STD‑1397C. This new adapter is ideal for PC/104+ embedded designs requiring high performance, fast processing, and low power dissipation. By utilizing and stocking key components in‑house, GET can also ensure long product availability to our customers. GET has a wide selection of software drivers that come standard with the PC/104+ adapter.


Key Hardware Features

  • 100% MIL‑STD‑1397C Compliant

  • 16 or 32‑bit transfers

  • Internal loop‑back capability

  • Passive Tap Mode

  • Reconfigurable to support specific applications

  • PCI 2.2 Compliant

  • 3.3v or 5v I/O signaling environment

  • Plug & Play

  • Independent Input and Output ports with Full Duplex Operation

  • Operate at maximum NTDS transfer rates

  • Buffer / Command Time‑outs: 1 µs granularity

  • Inter‑word Timers: 1 µs granularity

  • Field Upgradeable Firmware and Software Drivers

  • Platform & operating system independent software

Dual TAP

  • Save Slot Space: Ability to tap a full NTDS channel ( Input and Output Port ) using only one slot

  • Flexibility: Configure as transmit/receive or receive/receive

  • Software Enables:

  • Ability to save and restore multiple system trigger and capture configurations

  • Time‑Stamps at 100ns Resolution

  • Data View is available to view in Hex, Octal, Binary or Decimal

  • Printing and Data export capabilities

  • Normal (Buffer) or Event (Real Time) Modes, Events Modes can be set to a one‑shot mode,
      continuous mode, or a re‑trigger mode

  • Data, Function, Force or Any trigger types

  • Pattern/Mask match for Trigger, Record, and Check

  • Multiple Time‑stamp views: Real Time, Trigger Offset, and Delta Time Between Words

  • Ability to search with filtering of Recorded Data


Specifications
NTDS Interface MIL‑STD‑1397C Type D
Form Factor Standard PC/104+ card size
(3.575″ x 3.775″)
Power Requirements (typ.) +5 VDC @ 1.4 Amp (typ)
PCI Signal Compatibility
3.3v or 5v Signaling
Relative Humidity 0% to 90% (non‑condensing)
Operating Temperature 0°C to 55°C Operating
