Product 10070901

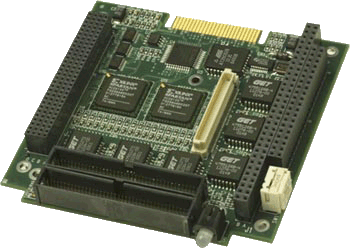

PC/104+ NTDS Parallel

PN 10070901

PN 10070901

Product Overview

GET PC/104+ adapters provide new levels of reliability and performance for interfacing to the MIL‑STD‑1397C. This new adapter is ideal for PC/104+ embedded designs requiring high performance, fast processing, and low power dissipation. By utilizing and stocking key components in‑house, GET can also ensure long product availability to our customers. GET has a wide selection of software drivers that come standard with the PC/104+ adapter.


Key Hardware Features

  • 100% MIL‑STD‑1397C Compliant

  • NTDS Type A, B, C, H

  • Full‑duplex 16 or 32‑bit transfers

  • Internal loop‑back capability

  • Reconfigurable to support specific applications

  • PC/104+ 2.0 Compliant

  • 3.3v or 5v I/O signaling environment

  • Plug & Play

  • Independent Input and Output ports

  • Operate at maximum NTDS transfer rates

  • True Full Duplex operation

  • Single high density I/O connector

  • Field Upgradeable Firmware and Software Drivers

  • Platform & operating system independent software

Transmit Features

  • Output tristate capability

  • Short Circuit Protection on all Outputs

  • Asynchronous commands do not disrupt data buffers

  • Command/Data Insert

Receive Features

  • Fail safe input operation

  • Receive multiple forced external functions without loss

  • Asynchronous commands do not disrupt data buffers

  • Command/Data Extract


Specifications
NTDS Interface MIL‑STD‑1397C Type A, B, C, H
Form Factor Standard PC/104+ card size
(3.575″ x 3.775″)
Power Requirements (typ.) +5 VDC @ 1.4 Amp (typ)
-12 VDC @ .2Amp (typ)
PCI Signal Compatibility
3.3v or 5v Signaling
Relative Humidity 0% to 90% (non‑condensing)
Operating Temperature 0°C to 55°C Operating

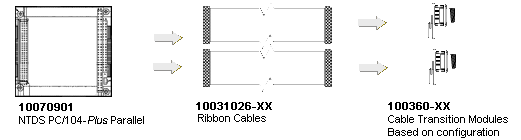

Configurations for this product

Parallel 709.gif

NTDS Adapter Ordering Information
Name Part Number
PC /104+, MIL ‑STD‑1397C
Type A/B/C/H, 120 pin I/O
10070901
PC /104+ Dual Tap/Daughter
Card, MIL‑STD‑1397C Type A/B/C/H
10071201
Connectors & Cables Ordering Information
Name Part Number
Ribbon Cable, 80 pin
10031026‑XX *
* Specify length in inches
Connector Transition Modules
Name Part Number Pinout
UYK‑7 Connector Transition Module 10036012 View Pin‑out Diagram (PDF)
UYK‑43 Connector Transition Module 10036017 View Pin‑out Diagram (PDF)
UYK‑44 Connector Transition Module 10036022 View Pin‑out Diagram (PDF)
UYK‑20 Connector Transition Module 10036027 View Pin‑out Diagram (PDF)
There are many other connector transition modules available. Contact GET sales for more information:
