Product 10046601

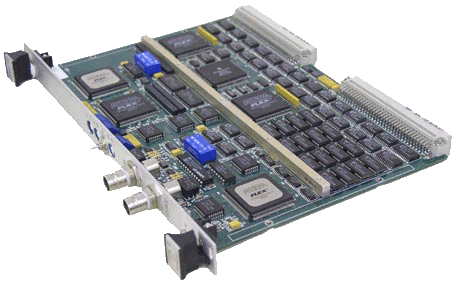

VME NTDS Serial Type E

Product Overview


Key Features

  • 100% MIL‑STD‑1397C Compliant

  • NTDS Type E (Low Level Serial)

  • Parity and ID control

  • Reconfigurable to support specific applications

  • Low power requirements

  • Sink and Source ports operate in an independent full duplex mode

  • Transceiver Short Circuit and Transient Protection

  • Information Frame parity and Control Frame ID control

  • SWT, Burst, and Forced Function support

  • Onboard MC 68340 32 bit CPU, local 256KB SRAM, 256KB EEPROM, 2 channel DMA, 3 timers, and 2 diagnostic serial ports

  • 4 Mb DPRAM, D16/D32:A24/A32:ADO:UAT:BLT:RMW compatible

  • NTDS Data Buffers may reside in DPRAM or VME system memory

  • Status indicator and base address selection rotary switches are front panel accessible

  • NTDS Sink and Source ports are independent − Full Duplex operation with sustained Maximum Data Rates ( SWT and Burst )

  • Transaction Insert and Extract feature supports complex bidirectional buffer protocols

  • Receive multiple Forced External Functions without loss

  • No Programming Switches or Jumpers


Specifications
NTDS Interface MIL‑STD‑1397C Type E
Form Factor Single 6U 4HP VME slot ( 233.35 X 160 mm X 20 mm )
Power Requirements (typ.) +5 VDC @ 1.4 Amp (typ)
-12 VDC @ .2Amp (typ)
Relative Humidity 0% to 90% (non‑condensing)
Operating Temperature 0°C to 55°C Operating

Typical Configuration


NTDS Adapter Ordering Information
Name Part Number
VME, MIL‑STD‑1397C Type E 10046601

NTDS Adapter Ordering Information
Name Part Number
Triax Cable, PL75 to PL 75, 25 feet standard length, additional lengths available 10031618
