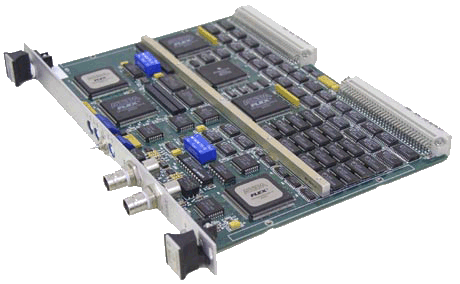

Product 10046501

VME NTDS Serial Type D


Product Overview

Key Features

  • 100% MIL‑STD‑1397C Compliant

  • NTDS Type D

  • Short circuit protection on all outputs

  • Fail safe input operation

  • Output tristate capability

  • Online fault tolerant redundancy

  • Single circuit card with metal reinforcing bar

  • Onboard MC 68340 32 bit CPU, local 256KB SRAM, 256KB EEPROM, 2 channel DMA, 3 timers, and 2 diagnostic serial ports

  • 4 Mb DPRAM, D16/D32:A24/A32:ADO:UAT:BLT:RMW compatible

  • NTDS Data Buffers may reside in DPRAM or VME system memory

  • Low Power requirements

  • Status indicator and base address selection rotary switches are front panel accessible

  • NTDS Input and Output ports are independent

  • Full Duplex operation with sustained Maximum Data Rates

  • Transaction Insert and Extract feature supports complex bidirectional buffer protocols

  • Receive multiple forced external functions without loss

  • Passive Channel Monitor with NTDS transaction filtering, triggering, termination, and timestamp


Specifications
NTDS Interface MIL‑STD‑1397C Type D
Form Factor Single 6U 4HP VME slot ( 233.35 X 160 mm X 20 mm )
Power Requirements (typ.) +5 VDC @ 1.4 Amp (typ)
-12 VDC @ .2Amp (typ)
Relative Humidity 0% to 90% (non‑condensing)
Operating Temperature 0°C to 55°C Operating
MTBF 348,490 hours Ground Benign
73,098 hours Navy Sheltered

Typical Configuration


NTDS Adapter Ordering Information
Name Part Number
VME, MIL‑STD‑1397C Type D 10046501

Connectors & Cables Ordering Information
Name Part Number
Coax Cable (75 ohms), UPL20-2(BNC) to UPL20-2(BNC), 25 feet standardlength, additional lengths available 10031639
