Hardened NTDS over Ethernet Systems

P/N: 10094002-2P-CC-D-N-V

P/N: 10094002-2P-CC-D-N-V

Hardened NTDS over Ethernet Systems

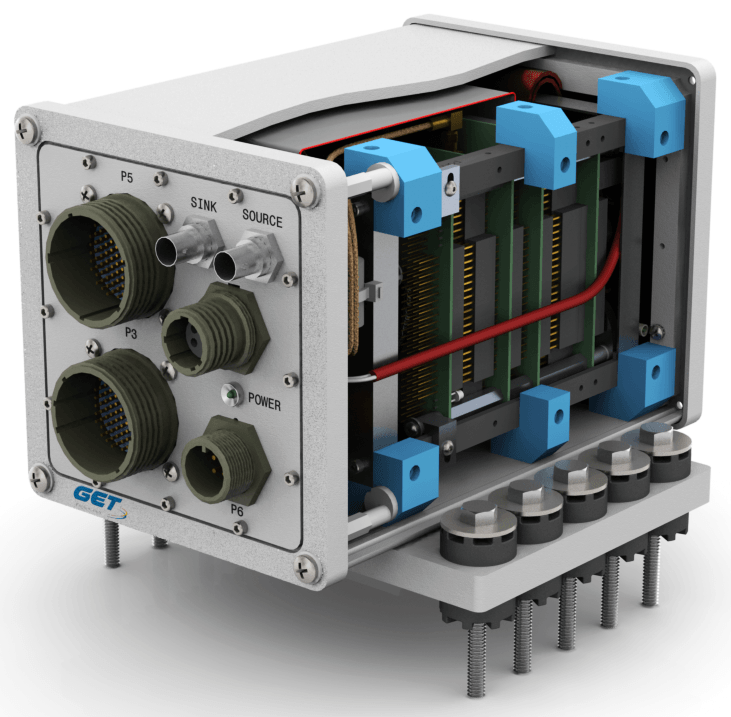

GET Engineering’s Full MIL NTDS over Ethernet solutions are now available. Qualified to Military Specification MIL‑S‑901D, Grade A Class1 for Shipboard operation, this system is currently deployed on US NAVY surface combatants. Featured here is our two channel, bulkhead mount NTDS Parallel (Type A/B/C/H) and Serial (Type D/E) unit.

Our MIL‑STD‑1397 NTDS Over Ethernet Systems transform NTDS data to standard Ethernet protocol, effectively turning your NTDS ports into an Ethernet aware device that meets stringent NTDS latency specifications. Any NTDS device can now be accessed through a standard 802.3 Gigabit Ethernet port. GET solutions integrate legacy tactical data processors and peripheral equipment into the new Net‑Centric Open Architecture standard.

Client software conforms to the standard GETEngineering driver protocol. The user configures the system and transacts data though the TCP/IP connection using GET’s Common User Interface (CUI) for ease of application development and porting. Multi‑node connectivity through the Ethernet interface is supported.

Key Features

  • 100% MIL‑STD‑1397C Compliant

  • NTDS Type A, B, C, H

  • NTDS Type D or E

  • Field Upgradeable Firmware

  • Bulkhead Mount

  • Network Configurable


Specifications Conditions
NTDS Parallel and Serial Interface MIL ‑ STD ‑1397C Type A/B/C/H, Serial Type D/E
Ethernet 1000/100/10 BASE‑T
Form Factor Bulkhead Mount
Power Requirements 90‑260 VAC 200mA 47‑63 Hz
NTDS I/O Connectors M28840P1 /P2, UBJ26‑2(BNC)
Shock MIL‑S‑901D Grade A Class 1 Type A Lightweight
Vibration MIL‑STD‑167‑1A Type 1 4‑24Hz
Humidity MIL‑STD‑810G‑507
EMI MIL‑STD‑461F CE/CF‑101 CS 114‑116
Drip MIL‑STD‑810G 506.5/III, 15°
Ship Motion DOD‑STD‑1399, 301A Pitch/Roll +30° to 30°
