ATDS over Ethernet Systems


P/N: 10094002-2P-CC-D-N-V

P/N: 10094002-2P-CC-D-N-V

ATDS over Ethernet
Systems

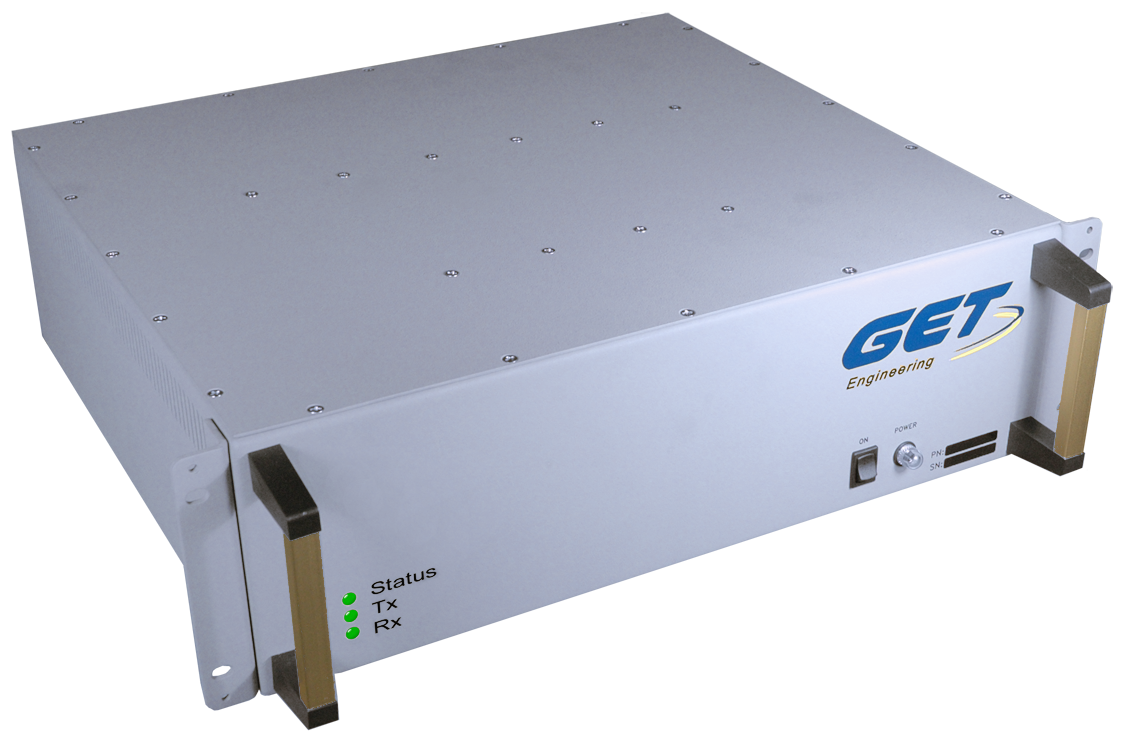

GET Engineering announces its ATDS over Ethernet (TCP/IP) System in a standard 3U 19” EIA-310 rack mount chassis. Powered by an Intel processor and Xilinx’s Spartan FPGA, this system is fully compliant to MIL-STD-188-208-1A (TADIL-A Appendix D2) functioning either as a Data Terminal Set (DTS) or Terminal Data System (TDS).
All configuration parameters are accessible through a simple software interface with FPGA controlled DMAchannels to reduce host CPU overhead. The software included with the ATDS system provides the user with an operating system independent API enabling easy migration from one operating system to another. This is the same API used by our ATDS adapters allowing applications written for an adapter based system to easily be ported to the Ethernet based interface.

Hardware Features

  • Single Board Computer (SBC)

    • Intel i7/i5/i3 or Atom processor

    • 8 GB dual channel DDR3 SDRAM

  • GET ATDS Adapter - PN 10075601

    • 1 to 4 channels available

    • Fully Compliant with MIL STD 188-208-1A Appendix D2

    • Independent FPGA controlled DMA channels

    • Extensive Built-In-Test capabilities enable rapid trouble shooting of interface

  • Power Requirements

    • 90-260 VAC 200mA 47-63 Hz

  • Ethernet

    • 1000/100/10BASE-T

  • Chassis

    • Standard 3U 19” EIA-310 rack mount

Software Features

  • Operating System Windows 7/8/10, Red Hat Enterprise, Centos Linux

  • Common API across multiple operating systems

  • Data Frames of 13.33 or 22 milliseconds

  • Supports Picket Addressing and Sidetone

  • User controlled Front Panel LED for Adapter Status

  • Command and Inter-word time-outs

  • Sample code provided for rapid application code development


Specifications Conditions
ATDS Serial Interface MIL‑STD‑188-208-1A (TADIL-A Appendix D2)
Ethernet 1000/100/10 BASE‑T
Form Factor Standard 3U 19” EIA-310 rack mount
Power Requirements 90‑260 VAC 200mA 47‑63 Hz
ATDS I/O Connectors
DB25
